- 6-digit LED display available in red
- Visibility: 30 feet (9 meters), Adjustable brightness levels
- Syncs to any NTP or SNTP source for accurate traceable time
- Display time in 12- or 24-hr format: hh:mm:ss
- Display date in dd:mm:yy, mm:dd:yy, or yy:mm:dd - configurable
- Black chassis with burnished aluminum front and rear cover plates standard
- Configures to time zone and daylight savings time parameters of clocks and generators attached to network
- WinDiscovery software utility included
- Custom colors and logos available

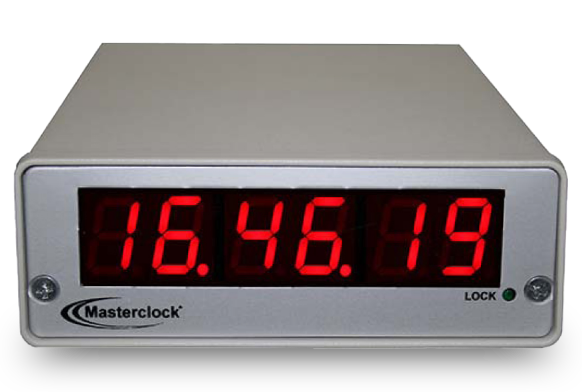

NTD200 Digital Clock
All of Masterclock's NTDS digital clocks sync to any NTP source for accurate traceable time. Each unit configures to time zone and daylight savings time parameters. WinDiscovery software is included.
Reference Documents
SpecificationsNTD200 Digital Clock
Connectors
- Ethernet RJ45
- DC input
- USB Connector
Power
- DC (9-28 VDC)
- Power Consumption <6W
Operating Parameters
- Temperature: 0° to +60°C
- Humidity: Up to 90% (non-condensing)
- Storage Temperature: -40 to +70°C
Physical
- Size: 6.44w x 1.44h x 4.06d in (16.35w x 3.65h x 10.32d cm)
- Weight: 16 oz (453.6 g)
Compliance
- FCC, ROHS, CE Marked, ANSI
MTBF
- 86,700 - 100,000 hrs
- Calculated using Fixed/Ground Mil HDBK 217 assumption
