- 4-digit LED display available in red, green, blue, or amber
- Adjustable brightness levels with scheduled dimming option
- Visibility: 100 feet (30 meters)
- Display time in 12- or 24-hr format: hh:mm
- Stainless steel option available
- WinDiscovery software included
- Custom case color and logo available with minimum quantity order

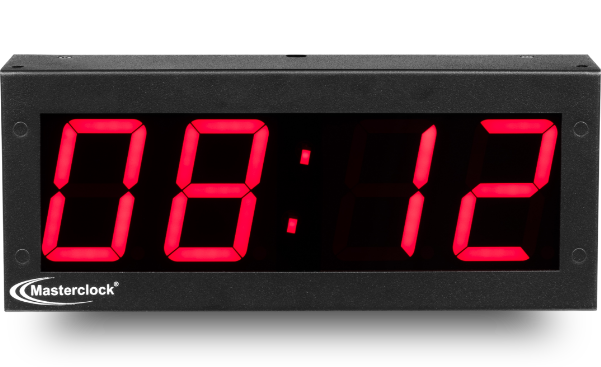

NTDS24 Digital Clock
The NTDS24 digital clock syncs to any NTP (Network Time Protocol) source for accurate traceable time. The unit configures to time zone and daylight savings time parameters and can be powered via PoE. WinDiscovery software is included.
Reference Documents
SpecificationsNTDS24 Digital Clock
Connectors
- Ethernet RJ45
- DC input
- USB for configuration
Power
- Choice of: POE (Power over Ethernet IEEE802.3af) or DC (24 VDC)
- Power consumption <8W
Operating Parameters
- Temperature: 0° to 60°C
- Humidity: Up to 90% (non-condensing)
Physical
- Black Metal Chassis
- Size: 9.31w x 3.82h x 1.85d in (23.6w x 9.7h x 4.7d cm)
- Weight: 2.0 lbs (0.9 kg)
Compliance
- FCC, ROHS, CE Marked, ANSI
MTBF
- 86,700 - 100,000 hrs
- Calculated using Fixed/Ground Mil HDBK 217 assumption
