- 6-digit LED display available in red, green, blue, or amber
- Adjustable brightness levels with scheduled dimming option
- Display time in 12- or 24-hr format: hh:mm:ss
- Visibility: 200 feet (60 meters)
- WinDiscovery software included
- Custom case color and logo available with minimum quantity order
- (The NTDS46 is a direct replacement for the Symmetricom ND-4)

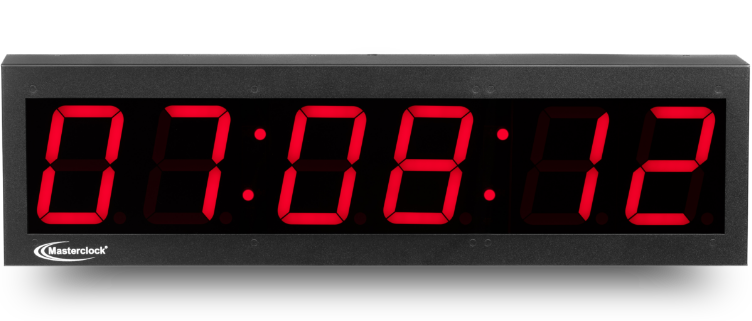

NTDS46 Digital Clock
The NTDS46 digital clock syncs to any NTP (Network Time Protocol) source for accurate traceable time. The unit configures to time zone and daylight savings time parameters and can be powered via PoE. WinDiscovery software is included.
Reference Documents
SpecificationsNTDS46 Digital Clock
Connectors
- Ethernet RJ45
- IEC AC Power
- DC input
- USB for configuration
Power
- Choice of: IEC AC, POE (Power over Ethernet IEEE802.3af) or DC (24 VDC)
- International IEC AC 90-240v, 50/60 Hz
- Power consumption <15W
Operating Parameters
- Temperature: 0° to 60°C
- Humidity: Up to 90% (non-condensing)
Physical
- Black powder-coated steel chassis
- Size: 24.9w x 6.8h x 2.3d in (63.3w x 17.4h x 5.9d cm)
- Weight: 10 lbs (4.5 kg)
Compliance
- FCC, ROHS, CE Marked, ANSI
MTBF
- 86,700 - 100,000 hrs
- Calculated using Fixed/Ground Mil HDBK 217 assumption
