- 4-digit LED display available in red, green, blue, or amber
- Adjustable brightness levels with scheduled dimming option
- Display time in 12- or 24-hr format: hh:mm
- Visibility: 350 feet (100 meters)
- WinDiscovery software included
- Custom case color and logo available with minimum quantity order
NTDS84 Digital Clock
The NTDS84 digital clock syncs to any NTP (Network Time Protocol) source for accurate traceable time. The unit configures to time zone and daylight savings time parameters and can be powered via PoE. WinDiscovery software is included.
Reference Documents
SpecificationsNTDS84 Digital Clock

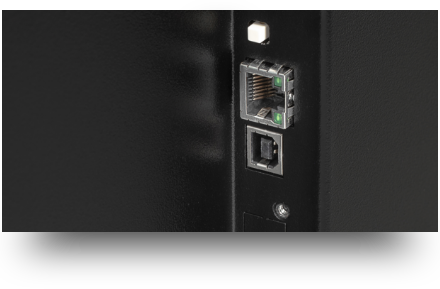

Connectors
- Ethernet RJ45
- IEC AC Power
- DC input
- USB for configuration
Power
- Choice of: IEC AC, POE (Power over Ethernet IEEE802.3af) or DC (24 VDC)
- International IEC AC 90-240v, 50/60 Hz
- Power consumption <15W
Operating Parameters
- Temperature: 0° to 60°C
- Humidity: Up to 90% (non-condensing)
Physical
- Black powder-coated steel chassis
- Size: 23.5w x 9.75h x 2.8d in (60w x 25h x 7d cm)
- Weight: 8.0 lbs (3.6 kg)
Compliance
- FCC, ROHS, CE Marked, ANSI
MTBF
- 86,700 - 100,000 hrs
- Calculated using Fixed/Ground Mil HDBK 217 assumption
