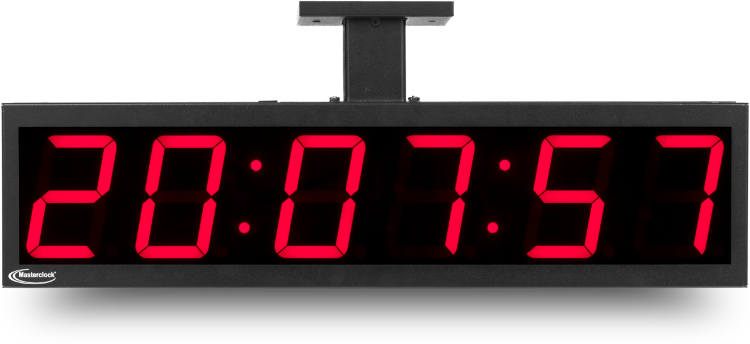

TCDS46-DF
4 in (10.2 cm) 6-Digit LED Display Panel (red, green, blue, or amber)
- 6-digit LED display - colors available in red, green, blue or amber
- Automatically detects IRIG-B, SMPTE 12M, 309M, 24/25/30 fps, 29.97 drop frame
- Display time in 12 or 24 hr format - hh:mm:ss
- Display date - mm-dd-yy or dd-mm-yy
- Adjustable brightness levels with auto-dimming option
- Fully configurable Daylight Saving Time parameters
- Custom case color and logo available with minimum quantity order

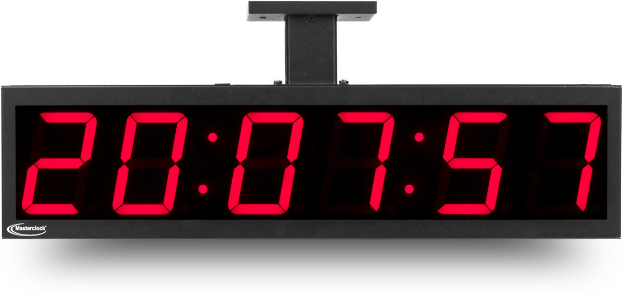

TCDS46-DF Digital Clock
The TCDS46-DF digital clock syncs to IRIG-B, SMPTE and EBU time codes for accurate traceable time. Each unit configures to time zone and daylight savings time parameters. WinDiscovery software is included.
Reference Documents
SpecificationsTCDS46-DF Digital Clock

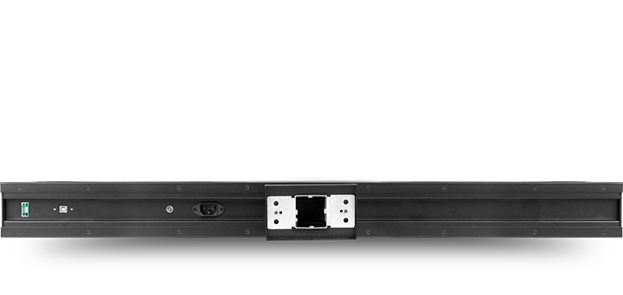

Connectors
- BNC female
- 3-pin terminal block
- USB for configuration
- DC input - 2.1 mm female
- IEC Stnd A/C Power
Power
- Choice of: IEC AC or DC (24 VDC)
- International IEC AC 90-240v, 50/60 Hz
- Power consumption <15W
Operating Parameters
- Temperature: 0 to 60°C
- Humidity: Up to 90% (non-condensing)
Physical
- Black powder-coated steel chassis
- Size: 25w x 6.8h x 3.3d in (63.3w x 17.4h x 8.4d cm),
Weight: 11.2lbs (5.1 kg)
Compliance
- FCC, ROHS, CE Marked, ANSI
